custom aluminum casement window

Product No.：2022125204813
Size：Customized
Color：white,grey,black or other RAL color
Material ：Thermal break or non thermal break aluminum profile
Glass：Double tempered glass
Hardware：China top brand or German brand hardware
Online Inquiry

Customized Aluminum Casement windows

A casement window is hinged at the side and opens outward like a door. It looks like a picture window because unlike double hung or sliding windows, a casement window has no rail. Some casement windows are simply pushed open, but most have a hand crank. Screens are placed on the inside of the window, where they're more protected from the elements. If you're installing windows over a sink, countertop or appliance, a casement window with a crank can be the perfect solution.

Product Specifications

Name	Aluminum Casement Window
Materials	6063-T5 Aluminum Alloy
Aluminum Profile	1.4mm thermal break aluminum profile
Glass	Double Tempered Glass
Glass Thickness	5MM+12A+5MM or other customized thickness
Hardware	German brand KERSSENBERG or China top brand hardware
Surface treatment	RAL color for Powder Coating, Anodized Wooden Grain, PVDF Coating
Performance	Sound insulation:25~29(dB); Waterproof:200~300(Pa/m2); Heat insulation:3.20~3.59(W/m2.k); Wind resistance:7.2~12.8*106(kgf/m2)
Advantages	1.Excellent weather resistance/heat insulation /water resistance /sound proofing/ corrosion resistance /fire proofing. 2.Energy saving/Environmentally friendly/ Durable performance/easy to clean/Low maintenance 3.with 10 years of warranty
Optional	Can be installed electrical or manual blinds between glass

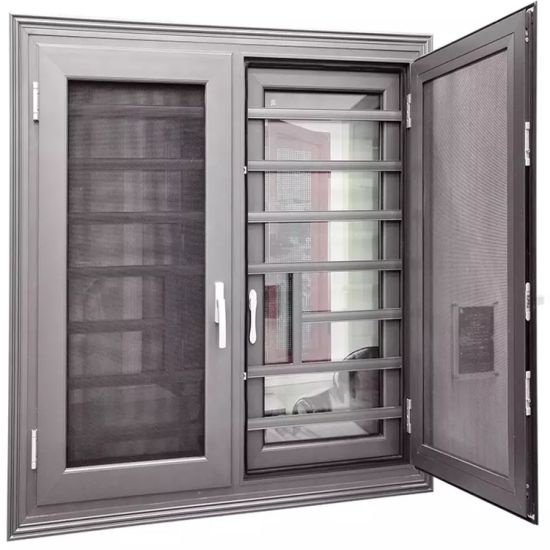

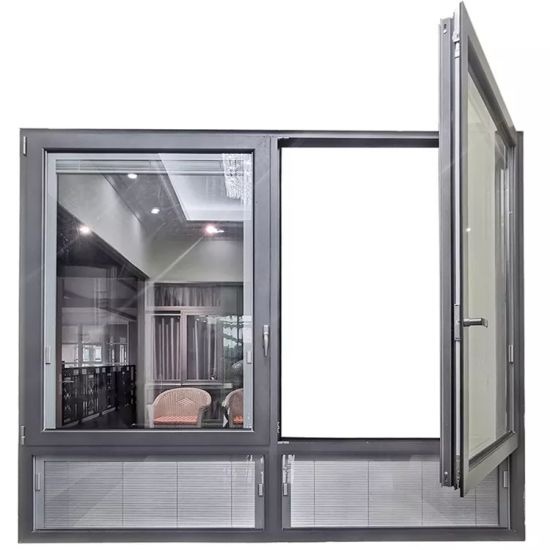

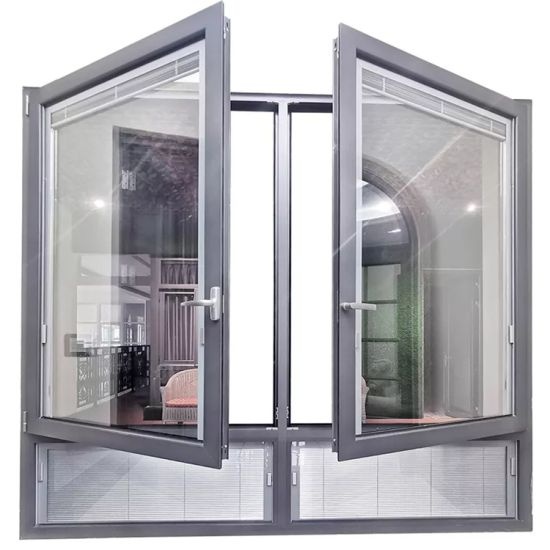

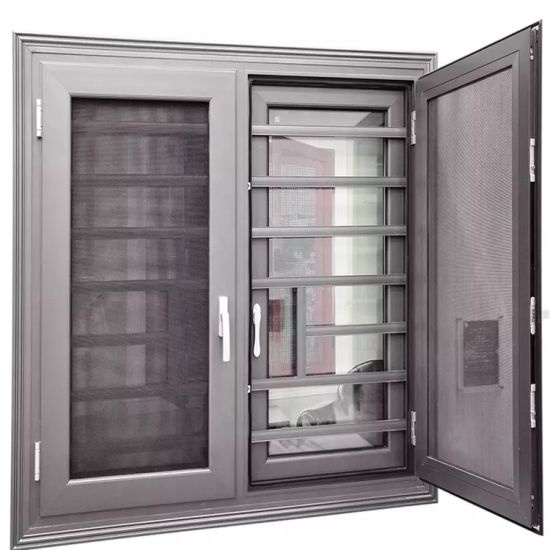

aluminum casement window
casement window details

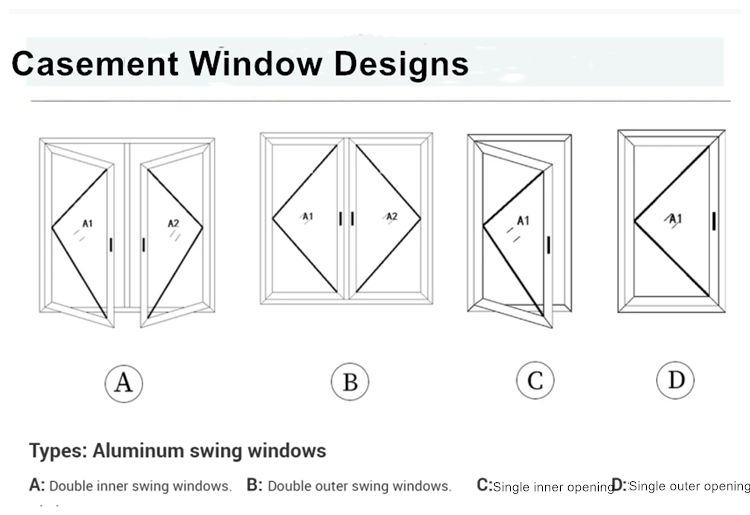

optional hardware fpr the windpws opening ways for casement window

aluminum frame color

custom glass for windows

aluminum workshop loading and shipping

about yifa construction
certificate
customer review
projects show

how to order
