USA style aluminum double hung window

Product No.：2022125221726
Size：Customized
Color：white,grey,black or other RAL color
Material ：Thermal break or non thermal break aluminum profile
Glass：Double tempered glass
Hardware：China top brand or American brand hardware
Online Inquiry

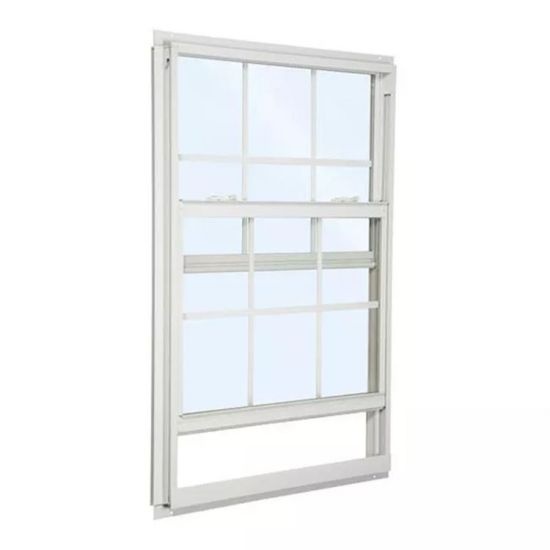

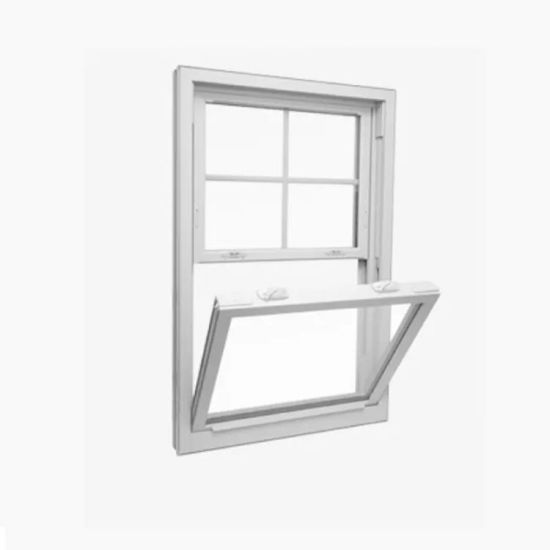

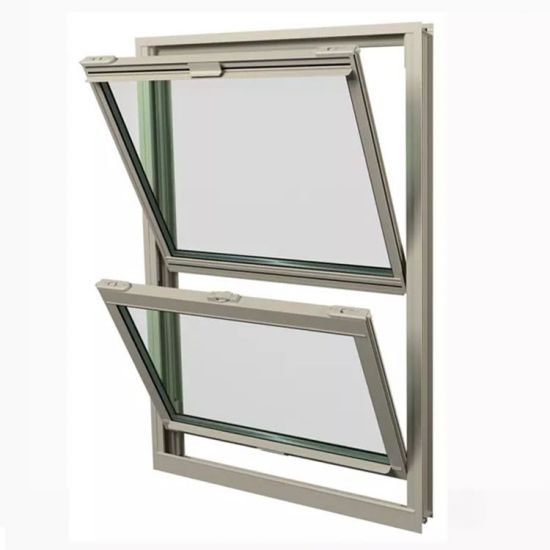

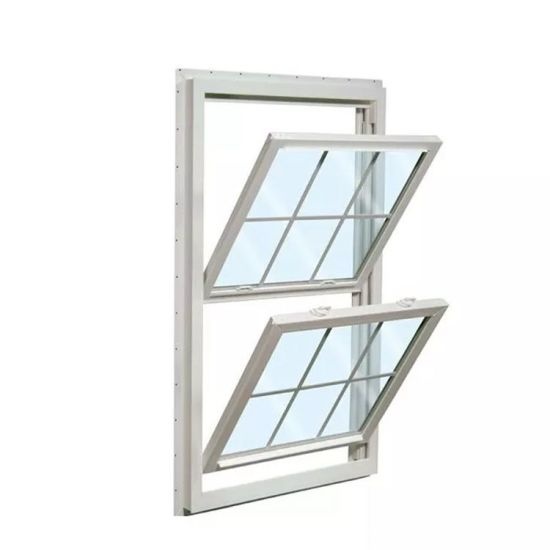

USA style aluminum double hung window

The double hung window, often referred to as a sash window, is easy to slide up and a standard choice for modern home construction.

In the single hung window, the bottom sash moves up to open and allow in air flow. The top sash is fixed. Since it opens and closes without protuding, single-hung windows are an excellent choice for rooms facing walkways, porches or patios.

Product Specifications

Name	Aluminum Double Hung window
Structure:	Thermal Break
Insulated glass:	5mm+12A+5mm
Frame Material:	6063 T5 Aluminum Profile
Aluminum Profile Thickness:	2.0 -3.0 MM
Visual width (exterior):	Top: 49 MM
	Middle: 24.3 MM
	Bottom:38.5 MM
Color available:	PVDF Black, PVDF Coffee, Crystal Stone
Anti-mosquito available:	304 stainless steel in black 0.8mm
Hinge/ Accessories	American Caldwell, AAMA 5
U Value(w/(m*k)):	≤1.6, Class 7
Wind Resistance(kPa):	≥5.0, Class 9
Gas Tightness(kPa):	0.21m³, Class 8
Water Tightness(Pa):	1400, Class 6
Sound insulated(dB):	35, Class 4

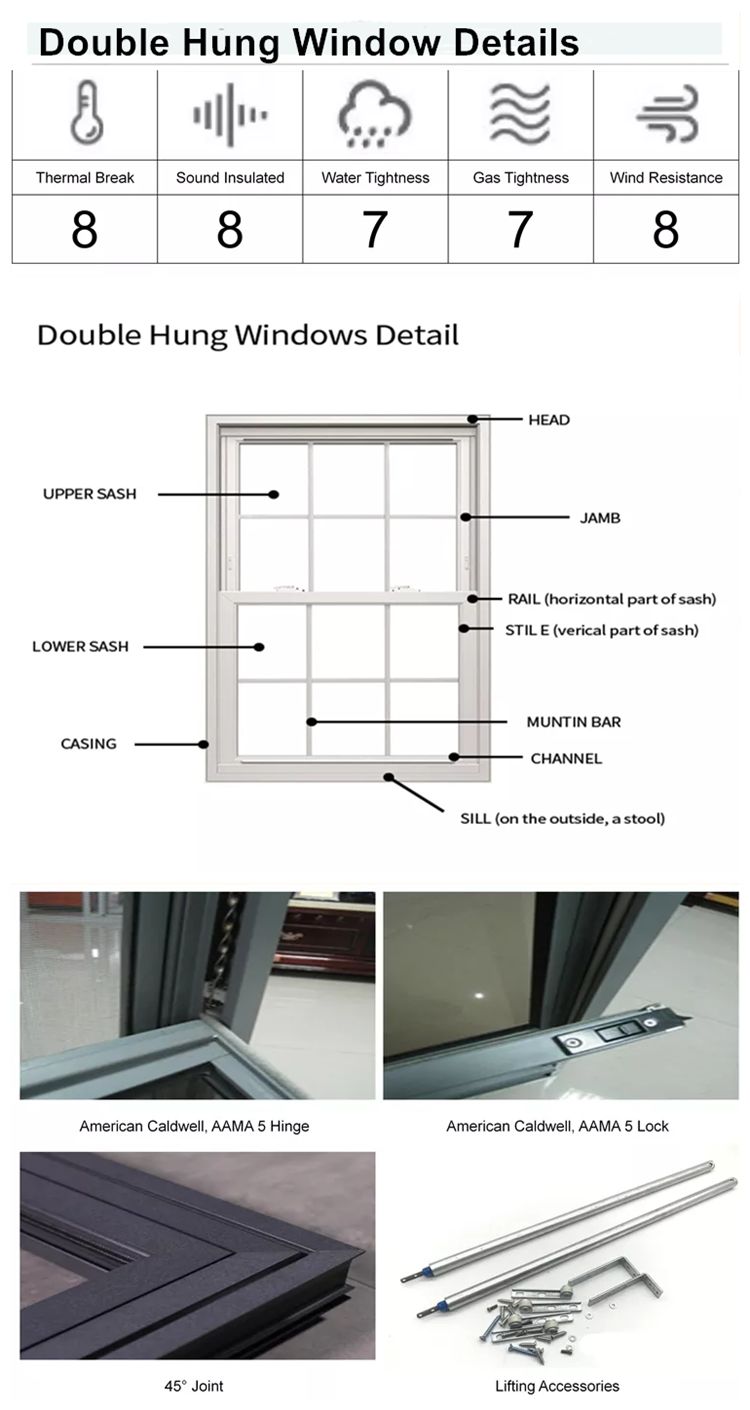

aluminum double hung window details

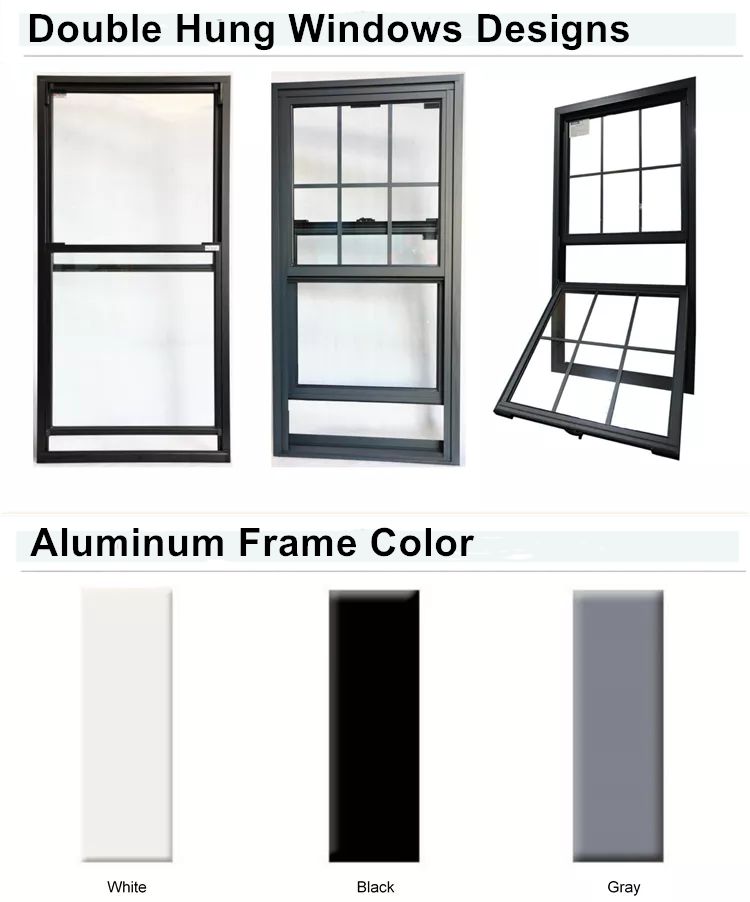

double hung window design

aluminum frame color

custom glass for windows
